Fixar 007
FIXAR 007 is a vertical takeoff and landing commercial drone with primary application in Aerial Photography, Monitoring, UAV Mapping & Surveying, Mining, Oil & Gas, Energy, and Agricultural sectors. The intuitive approach to working with the ground control station makes it possible for anyone to use the FIXAR 007. With inertial orientation, FIXAR 007 can work stably under magnetic anomalies and in the event of satellite loss.
Specifications
|
Flight Preparation
|
Less than 5 min
|
|
Maximum Payload
|
2000 g
|
|
Wingspan
|
1540 mm
|
|
Speed (Max)
|
27 m/s
|
|
Speed (Cruise)
|
19 m/s
|
|
Ascension Rate
|
5-10 m/s
|
|
Flight time
|
60 mins
|
|
Maximum Flight Range
|
25 km
|
|
Maximum Flight Distance
|
60 km
|
|
Wind Resistance in Vertical Flight
|
12 m/s
|
|
Operating Temperature
|
from -30 to +60 degrees
|
|
Case Dimensions
|
95.5 * 69 * 36.5 cm
|
|
Case weight with equipment
|
26 kg
|
Payload options
REDEDGE-MX
Multispectral Camera

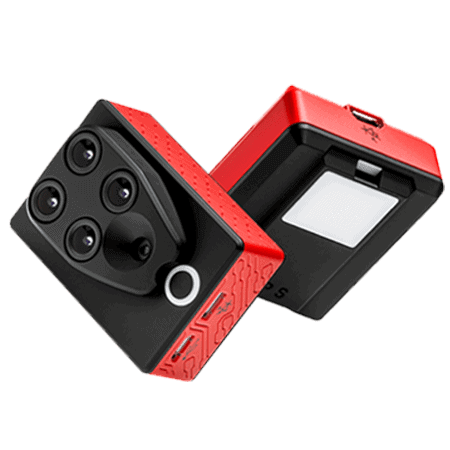

Parrot Sequoia
Multispectral Camera

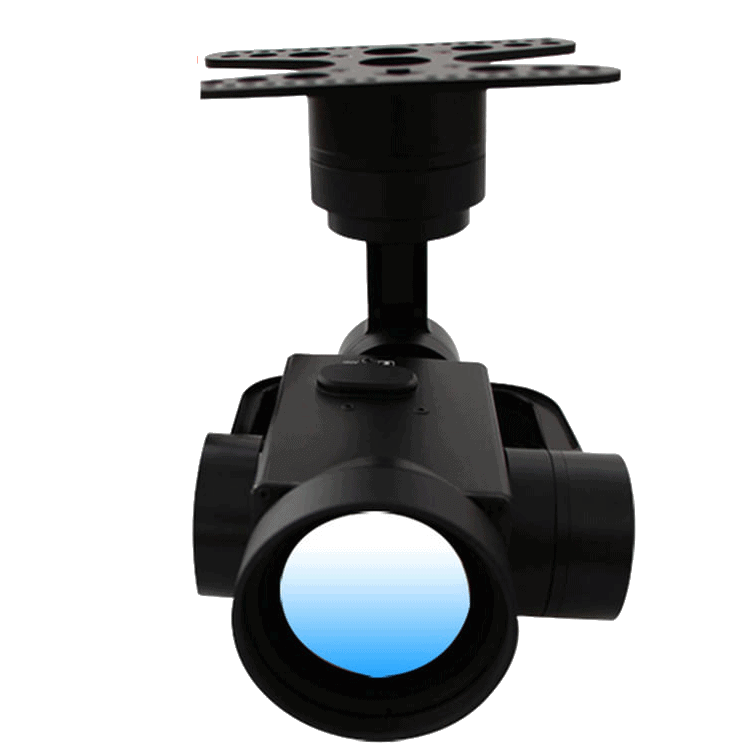

SKY EYE-T50 3-AXIS
Gimbal for thermal camera with 50mm lens

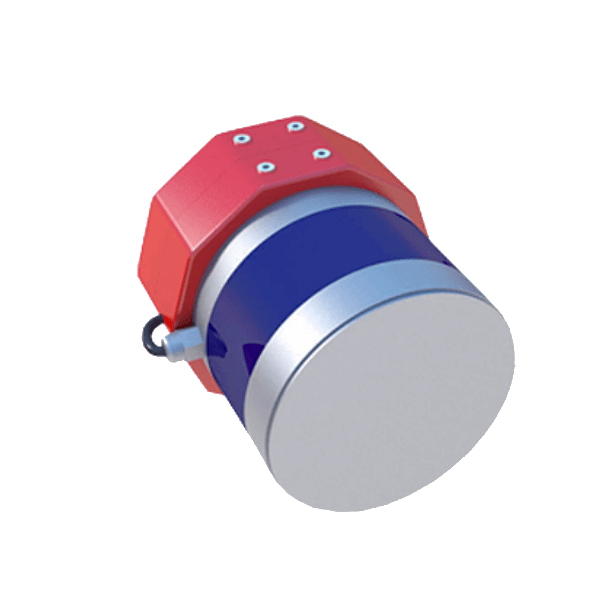

LIDAR
Long-range LIDAR sensor for high resolution 3D models
SONY DSC-RX1
Camera. 42.4 MP, 35 mm lens

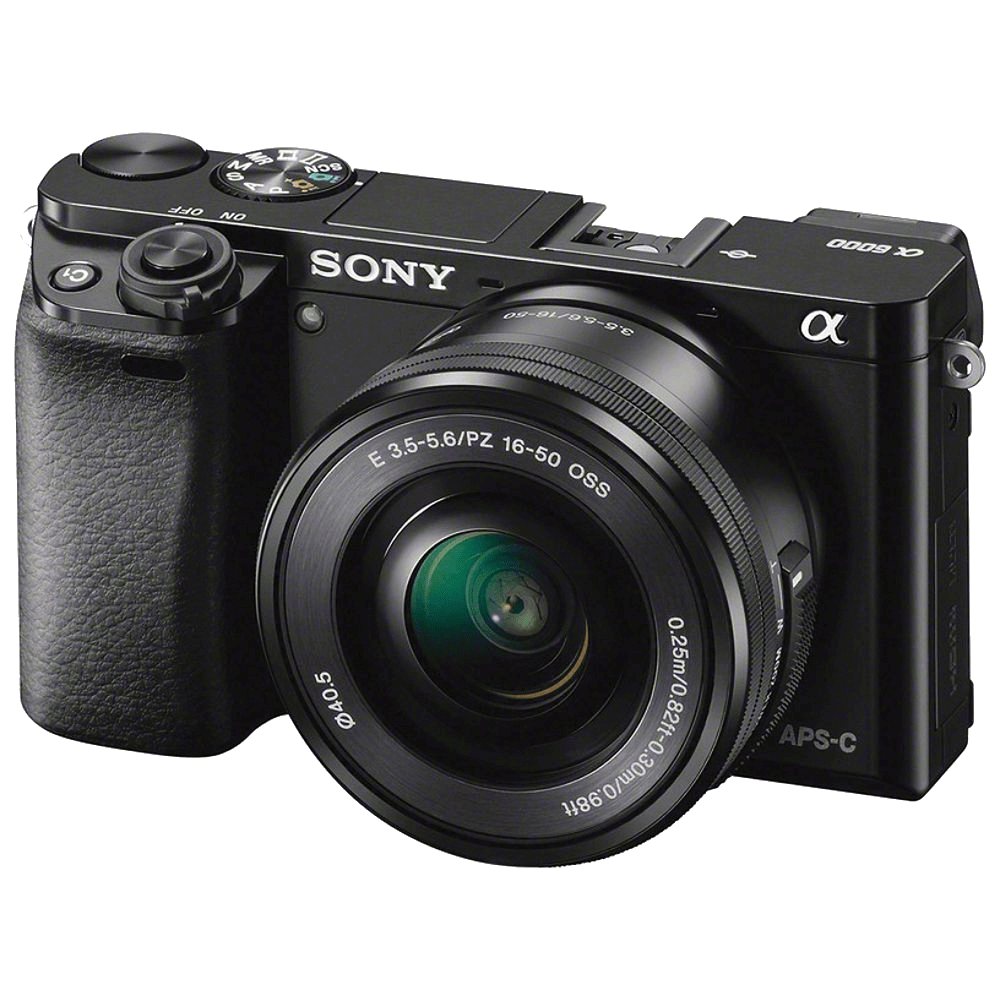

SONY A6000
Camera. 24 MP, 20 mm lens

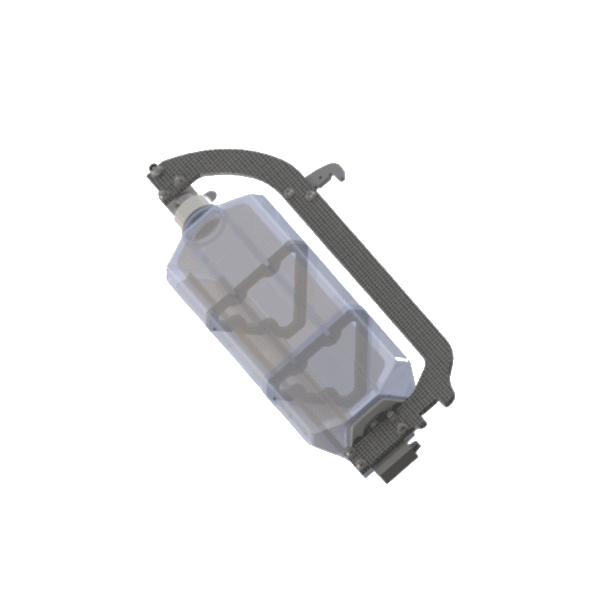

DSMK1800
Replaceable module with dispenser for application of biological plant protection products

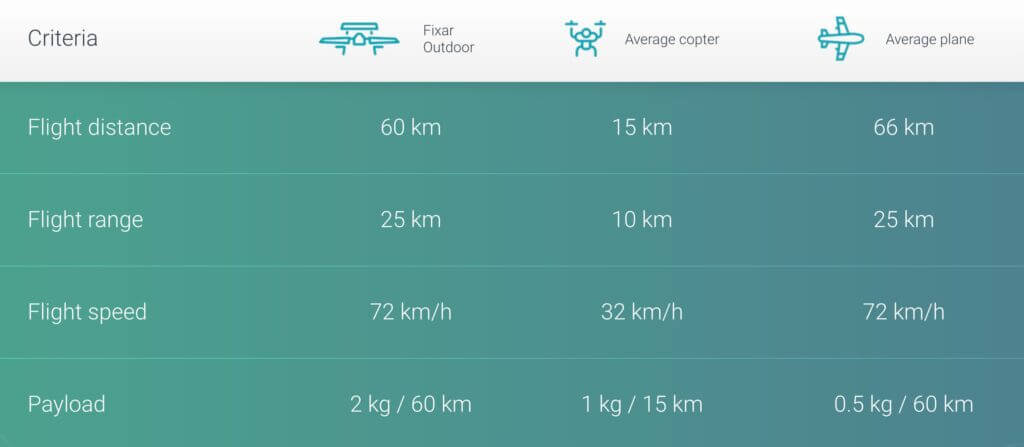

Technical Comparison
